Ships-2 Colors

USN WW2 camouflage schemes, or "measures", were specified in the Ships-2 manual. There were 3 revisions to the original release, see this website sponsored by Snyder and Short Enterprises for a wealth of detailed information: www.shipcamouflage.com/warship_camouflage.htm.

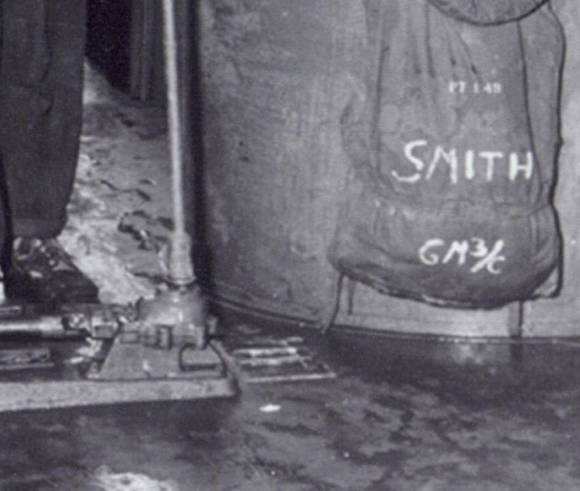

A common question is if PT boats had a black boot topping between the bottom paint and hull paint. The answer so far is no, what appears in some photos is a scum line from dirty waters and / or moss or algae. A discussion on the PT board can be found here.

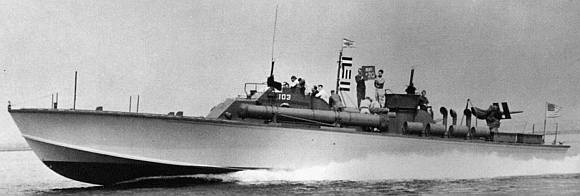

The first few Elco 80' boats, possibly up to PT 117, were painted:
Dark Gray 5-D on the deck and topsides
Navy Gray #5 on the hull
And Coperoyd on the bottom

Example, I'm not sure if this is a colorized image:

Elco PT 117 Paint

When shipped to Panama, stateside images of early boats heading to the Pacific show what appears to be a solid color, possibly Measure 1:
Dark Gray 5-D on the deck and topsides
Dark Gray 5-D on the hull
And Coperoyd on the bottom

PT boat colors and camouflage in the Pacific varied. For example this series of photos of PT 61, flanked by all green boats PT 47 and most likely PT 109, shows a custom mixed paint that the crew voted on: PT 61 Color Images. A crewman wetted the deck in one of the shots, you can see how far weathering faded the paint.

PT struts, props, shafts, and rudders were most likely unpainted, see the PT forum thread here.

PT boats in the Pacific patrolled mostly at night. Ships-2 Revision 2 has this to say about measures effective at night:

Measures for reducing visibility have best chance of success at night, in gray weather or on hazy days when visibility is limited. Very light colored ships are best at night except in the glare of searchlight. Light colored ships are best against periscope observation and dark ships are best against air observation. When light ships are clearly visible it is easy to judge target angle and make identification. Dark ships are much better in this respect.

A night-time problem the crews faced was the bioluminescence of their wake when running along at anything except idle. To quote the captain of the 105, Dick Keresey:

"At night in the tropics, our wake, which was large for such a small boat, glowed madly from bioluminescence. Millions of microscopic organisms disturbed by the thrashing of propellers turned on their lights to see what was going on. Looking down over the stern, I was fascinated by the way those tiny lights swirled up and down, then not amused at all when I saw that at any speed above idling that wake was a long, shining arrow pointing right up our a**".

Other informative websites:
http://www.researcheratlarge.com/Ships/S19-7/index.html, Many Ships-2 update memos and instructions.
http://archive.hnsa.org/doc/camo/index.htm, Ships-2 Revision 2
http://home.att.net/~shipmodelfaq/smf-q046.html, Contributed by Jon Warneke.
http://www.steelnavy.com/usnchips.htm, Similar to above with different color chips.
http://www.uscg.mil/history/docs/USCG_Painting_Regs_1935.pdf, Coast Guard 1935 instructions for painting. Color chip link: http://www.uscg.mil/history/gifs/USCG_1935_Color_Chips.jpg

The color samples found below include the Munsell and RGB equivalents where known. The RGB values, as well as the values used by this pages html code, were derived from Photoshop and the Munsell Conversion Software that has a 1931 value selection. The site states the program is free until 2009. I didn't know if 1931 was the right edition but John Snyder of Snyder And Short Enterprises and White Ensign Models helped me out:

I can confirm that the 1931 Munsell Book of Color is an appropriate edition for you to use for USN WW2 paints. The USN based their colors on the 1929 Munsell Book of Color, and its updates through 1942.

Beginning in 1944 Munsell began revising their color notation system, finally finishing about 1965. This resulted in the current Munsell Book of Color, and there is no correlation between the color notations in the current book and the original edition.

The samples found below are the nearest match I can manage and meant to give a general idea of the color. Except for my color conversions most of the color information found below is from a Plastic Ship Modeler Magazine article (issue #97/3) by Alan Raven reprinted at shipcamouflage.com. Notes found in the color sample area are from this article. Excellent work Alan!


Color, Year nc
Number
nc
Munsell value, RGB value

On color sample background with notes from Allen Raven's article where applicable. If needed, highlight text to see it against light colored backgrounds.

Navy Gray, 1919 #5 10B 6.5/1.5, 151 162 169
Deck Gray, 1919 #20 N 3.6/0, 87 87 87 :: #20 Deck Gray (1919) should not be confused with #4 Deck Gray 20 (1944). Although both were of neutral tone (i.e. a nice black and white only), #4 Deck Gray 20 (1944) was darker.
Black, 1920's #82 and #24 N 2.5/0, 62 62 62
Light Gray, 1941 5-L 10B 7/1.5, 165 175 182 :: 5-L (1941) should not be confused with 5-L (1943), the two colors being quite different. 5-L (1943) was first used on Measures 23 and 31. 037 Light Gray 5-L was a neutral gray (i.e. without hue) introduced in very late 1944.
Ocean Gray, 1941 5-O 5PB 4.5/3, 100 109 129 :: Same tint as 1942 Flight Deck Stain #21.
Dark Gray, 1941 5-D 5PB 2/1.5, 49 52 62
Haze Gray, 1941 5-H 5PB 5.7/1.6, 135 140 149
Haze Green, 1941 - 7G 5.9/2.5, 120 152 137
Sea Blue, 1941 5-S 2.5PB 3.6/4, 66 89 114
Haze (Cabot), 1941 - 7PB 3.2/2, 75 77 93
Pearl Harbor Blue, 1941 3 test colors 7.5PB 1.5/6, 38 39 78
Sapphire Blue, 1941 - 5PB 2.2/6, 31 56 94
PT Green, 1941 - Unknown, locally obtained? Documentary and photographic evidence strongly suggest a green of medium tone.
Cavite Blue, 1941 - 5PB 4/2, 91 97 111 ***?5PB 3/2?, #434A58, 67 74 88***
Union Castle Lavender, 1941 - 10P (P-RP) 6/4, 166 139 160
Navy Blue, 1941 5-N, same as 1944 5-NB Navy Blue 5PB 3/2, 67 74 88
Thayer Blue, 19? 5-B 5PB 6.5/2, 154 161 172
Deck Blue, 1942 20-B 5PB 3/1.5, 69 74 84
Deck Blue Revised, 1942 20-B 5PB 3/4, 59 74 101
Blue Flight Deck Stain, 1942 250N 5PB 3/1.8, 68 74 86
Flight Deck Stain, 1942 #21 5PB 4.5/3, 100 109 129 :: Same tint as 1941 Ocean Gray 5-O.
Flight Deck Stain Revised, 1942 #21 5PB 3/4, 59 74 101 :: #21 Flight Deck stain (1944), although different from the 1943 #21 stain, did not have the word "revised" as part of the title on the official camouflage sheets. The suffix was added by the author to distinguish between the two stains.
Mountbatten Pink (Dark), 1942 - 5RP 5/1.5, 131 118 122
Elco Gray, 1942 - Exact color and tone unknown. Worn by several PT Boats upon arrival in the Pacific theatre in 1942. Elco Gray was a PT Boat crew term and the color may have been "Ocean Gray". Elco Gray was used by PT Boat squadrons 2 and 3 at the start of the Solomons campaign.
Light Gray Green, 1942 - Exact color and tone unknown. Used from late 1942 by PT 61 and possibly other boats of Squadron 3.
Countershade Gray, 1942 - Exact color and tone unknown. Described by Elco who originated the color, as a blue very similar in color to Thayer Blue and Western Approaches Blue, but slightly darker in tone.
Yellow Green, 1942 - Exact color and tone unknown. Described by Elco who originated the color as a light yellow green.
Medium Pink, 1942 - Exact color and tone unknown. No color sample or formula found. This color may have been based upon the pink that was believed to have been worn by some British corvettes in the 1941/42 period. Not to be confused with Mountbatten Pink, a quite different color.
Mauve, 1942 - Evidence suggests that this color could be Mountbatten Pink.
Green, 1942 - Evidence suggests that this color could be Western Approaches Green.
Blue, 1942 - Evidence suggests that this color could be Thayer Blue.
Brown, 1942 1A 5YR (YR-Y) 2/2, 65 49 41
Brown, 1942 2A 5YR (YR) 3/4, 99 66 46
Brown, 1942 3A 10YR (YR-Y) 3.5/3, 102 81 57
Brown, 1942 4A 10YR (YR-Y) 5/6, 154 115 57
Green, 1942 1A 5GY (GY) 3/2, 70 76 59
Green, 1942 2A 5GY (GY) 3.5/4, 77 90 50
Green, 1942 3A 5G 4.5/2, 93 114 103
Green, 1942 4A 5GY (GY) 4/6, 84 104 37
(Green), 1942 5/84 - 2/5TMA 5G 5/8, 10 139 98 :: Same as 1943 MTB Green?
(Blue Green), 1942 5/84 - 4/5TMA 5BG 4/4, 53 105 102
Lime Green, 1942 - Exact color and tone unknown. Known to be light in tone and used by APD's and landing craft from mid 1942 into 1943. The color was usually used as the field or background color, over which was painted streaks of dark green.
Pale Gray, 1942 5-P 5PB 8/1, 197 201 206
Light Gray Revised, 1943 5-L 5PB 7/2, 167 174 185 :: 5-L (1941) should not be confused with 5-L (1943), the two colors being quite different. 5-L (1943) was first used on Measures 23 and 31. 037 Light Gray 5-L was a neutral gray (i.e. without hue) introduced in very late 1944.
Dark Green, 1943 Formula 759 Exact color and tone unknown. It may be the color "Green IA" (1942 series), or it could be the Dark Green of 5/84 - 4/5TMA. It should be noted that "Green 1A" and "5/84 - 4/5TMA" are quite different in hue.
MTB Green, 1943 - 5G 5/8, 10 139 98 :: There is the possibility that this color was the one used on PT Boats upon transfer to the British under lease lend, and never used on American Flag Boats. Same as 1942 Green?
Robins Egg Blue, 1943 - Exact color and tone unknown. Known to be very light in tone. There is the possibility that Robins Egg Blue is in fact Thayer Blue.
Haze Green, 1943 5-HG 10GY (GY-G) 6/2, 134 152 132
Ocean Green, 1943 5-OG 10GY (GY-G) 5/2, 110 126 109
Navy Green, 1943 5-NG 10GY (GY-G) 3/2, 64 77 64
Deck Green, 1943 20-G 10GY (GY-G) 2/2, 45 55 46
Pale Green, 1943 5-PG 5GY 8/2, 197 204 172
Light Green, 1943 5-LG 5GY 7/2, 170 177 148
Haze Green Revised, 1943 5-HG 5GY 6/2, 143 150 124
Ocean Green Revised, 1943 5-OG 5GY 5/2, 117 124 102
Navy Green Revised, 1943 5-NG 5GY 3/2, 70 76 59
Green Tinting Medium, 1944 5-GTM 5GY 3.5/3, 79 89 59
Green, 1944 #1 5GY 5.5/3, 128 139 103 :: Officially described as Outside Green 1 but usually referred to on camouflage sheets as simply #1 Green. This color should not be confused with the 1942 color known as Green 1A.
Green, 1944 #2 5GY 4/2, 93 99 79 :: Officially described as Outside Green 2 but usually referred to on camouflage sheets as simply #2 Green. This color should not be confused with the 1942 color known as Green 2A.
Green, 1944 #3 5GY 2.5/2, 59 65 50 :: Officially described as Outside Green 3 but usually referred to on camouflage sheets as simply #3 Green. This color should not be confused with the 1942 color known as Green 3A.
Brown, 1944 #4 10YR (YR-Y) 4/3, 115 93 67 :: Officially described as Outside Brown #4, but usually referred to on the camouflage sheets as simply #4 Brown. This should not be confused with the 1942 color known as Brown 4A.
Outside Gray, 1944 #46 N 8/0, 200 200 200
Light Gray, 1944 #37 5-L N 7/0, 173 173 173 :: 5-L (1941) should not be confused with 5-L (1943), the two colors being quite different. 5-L (1943) was first used on Measures 23 and 31. 037 Light Gray 5-L was a neutral gray (i.e. without hue) introduced in very late 1944.
Haze Gray, 1944 #27 5-H N 6/0, 147 147 147
Ocean Gray, 1944 #17 5-O N 5/0, 122 122 122
Medium Gray, 1944 #16 N 4.9/0, 119 119 119
Outside Gray Revised, 1944 #11 N 4/0, 97 97 97
Navy Gray, 1944 #7 5-N N 3.4/0, 83 83 83
Deck Gray, 1944 #4 20 N 2/0, 52 52 52 :: #20 Deck Gray (1919) should not be confused with 04 Deck Gray 20 (1944). Although both were of neutral tone (i.e. a nice black and white only), #4 Deck Gray 20 (1944) was darker.
Navy Blue, 1944 5-NB, same as 1941 5-N Navy Blue 5PB 3/2, 67 74 88

The following is a guess.

Color, Year nc
Number
nc
Munsell value, RGB value
Coperoyd Company trade name Unknown, color is a guess

Here is the paint section from the Navy PT boat build manual found at http://archive.hnsa.org/doc/pt/specs/index.htm . Please note that this manual is a later version than the 103 class, read coverage notes below the title:

*****************************************
DETAIL SPECIFICATIONS FOR BUILDING MOTOR TORPEDO BOATS
PT 565-624
(80-Foot)
FOR THE UNITED STATES NAVY

BUREAU OF SHIPS
NAVY DEPARTMENT
31 March 1944

NOTE: The Detail Specifications are based on Specifications for Motor Torpedo Boats PT 103 to 138 design No. 80-N-3 (dated 2 January 1942) and addenda thereto (dated 22 February 1943), as prepared by Electric Boat Company, Elco Naval Division, Bayonne, N. J., with the minimum modifications made by the Bureau of Ships to make the hull specifications applicable to PT 565-624 Class.

Detail Specifications For Building Motor Torpedo Boats, March 1944, provides the builders specifications for PT 565-624.

SECTION C-9.
PAINTING AND VARNISHING.

Vessels shall be painted and varnished throughout, with a sufficient number of coats to preserve the surface and to obtain a satisfactory finish. All fastening holes, etc., shall be carefully puttied, where not plugged. Sanding before and between coats as required for obtaining suitable finish for the service intended.

Topsides shall be primed with Navy formula 5-11 special haze gray, Navy Dept. Spec. 52C45. Fastening holes shall be cemented with smoothing cement, Navy formula 62, Navy Dept. Spec. 52C25. One coat haze gray, Navy formula 5-H shall next be applied. Third (finish) coat shall be in accordance with latest camouflage instructions.

Bottom shall be primed with copper bottom enamel, fastening holes cemented with surfacing putty and finished with two coats copper bottom enamel.

Entire interior shall be painted with one coat of primer, glazed as required, and two coats of fire retardant white paint, Navy Dept. Spec. 52P22. An extra coat of enamel shall be applied to surfaces adjacent to passageways, areas of traffic, and confined spaces as directed by the Supervisor, where personnel traffic would render the fire retardant paint difficult to maintain.

Superstructure shall be primed and finished with three coats formula 5-11 special haze gray, final coat in accordance with latest camouflage instructions. Decks shall be primed, fastening holes filled with Navy formula 62 smoothing cement Navy Dept. Spec. 52C25 and finished with two coats nonskid deck paint, in accordance with latest camouflage instructions.

Metal work, interior and exterior, shall be pickled where practical, coated with zinc chromate, and painted as necessary, color 25 according to location.

Designating numbers and insignia shall be painted as required.

No red paint shall appear topsides.

The above specifications are maximum requirements and it shall be in the province of the Supervisor of Shipbuilding to authorize modifications where such modifications tend to expedite construction while still obtaining satisfactory results.
*****************************************
